Engine / Drive Train Specifications
Engine: 107cc, 4-stroke
Cylinder Arrangement: Single cylinder
Max Horsepower: 6.44HP/7500RPM
Max Torque: 5.163ft-lb/5500RPM
Bore × Stroke: 52mm x 55.5mm
Compression Ratio: 9.1:1
Cooling System: Air cooled
Transmission: Fully automatic
Start System: Electric start
Ignition: CDI
Final Drive: Chain drive
Max Limited Speed: 10MPH(Y-6+ ATV)
Battery: 12V4Ah
Frame / Body / Suspension / Brakes
Front Suspension: Dual A-Arm with dual shock absorbers.
Rear Suspension: Swing arm with central single shock absorber.
Front Brake: Drum brake.
Rear Brake: Hydraulic disc brake.
Front Tires: 14.5x7-6
Rear Tires: 14.5x7-6
Capacities / Dimensions
Max Load: 143lbs
Gross Weight: 172lbs
Net Weight: 168lbs
Overall Length: 49.21inches
Overall Width: 28.74inches
Overall Height: 33.86inches
Carton Dimensions (L × W × H): 45.28x26.77x25.6inches
Seat Height: 21.26inches
Wheelbase: 33.07inches
Ground Clearance: 2.95inches
Gas Tank Capacity: 0.53gal
Fuel Consumption: 94.08mpg

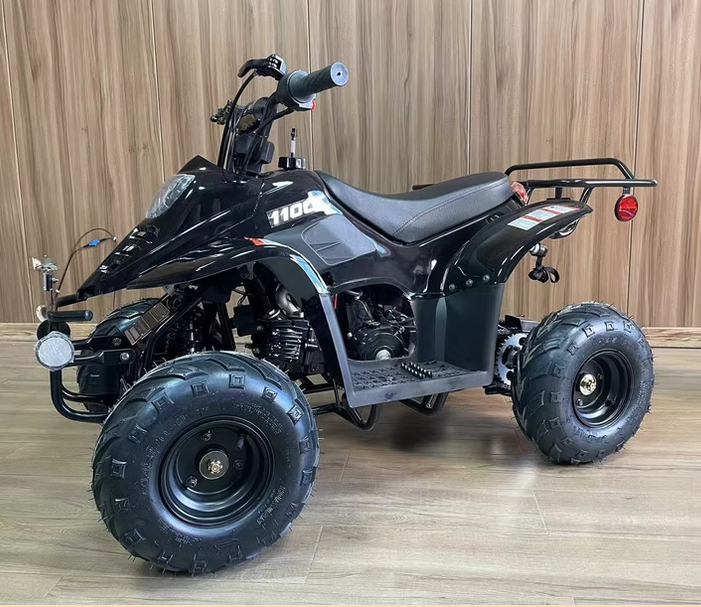

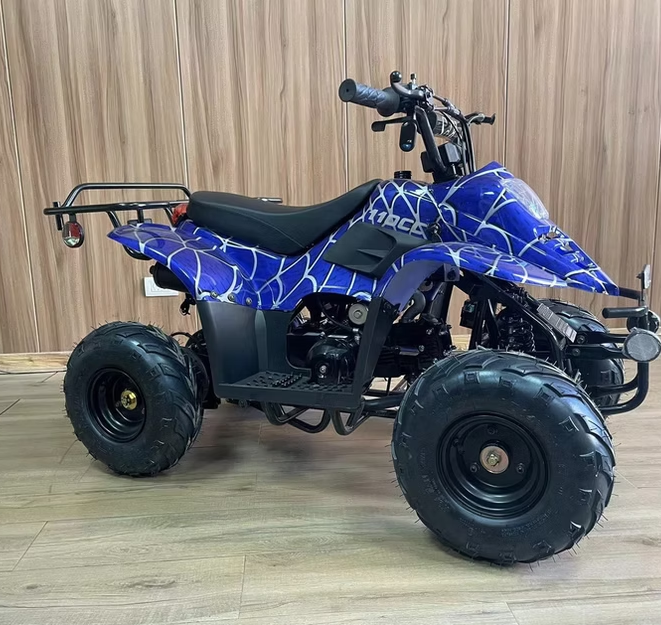

Available colors: Burgundy, Blue, Black, Red/Spider, Blue/Spider, Black/Spider, Green Camo, Leaf Camo, Pink Camo, Purple Camo.
Off-Road Legal:
US EPA (Environmental Protection Agency) APPROVED
Not For Sale In California (This unit is not California Air Resources Board Compliant & can not be registered for use)
For California customers please check our California Legal Section for CA DMV registerable vehicles.
Important Safety Information
Recommended for riders 6 years of age and older. The Manufacture of this product recommends that all ATV riders take a training course and thoroughly read their owner's manual. An adult must supervise riders younger than 16 years of age.
Customers, please check the Manufactures ATV & Scooter Safety & ATV Safety Alert for more information.
A professional mechanic or reputable shop must perform the assembly on the vehicle and complete the manufactures prep list.
Read Owner’s Manual and all on-product warnings. ATVs can be hazardous to operate. For your safety, Always wear a helmet, eye protection, and protective gear. Never carry a passenger. Never ride under the influence of drugs or alcohol. Never ride on public roads or pavement. Be extra careful on difficult terrain. All children under the age of 16 riding ATVs should always have adult supervision at all times.
